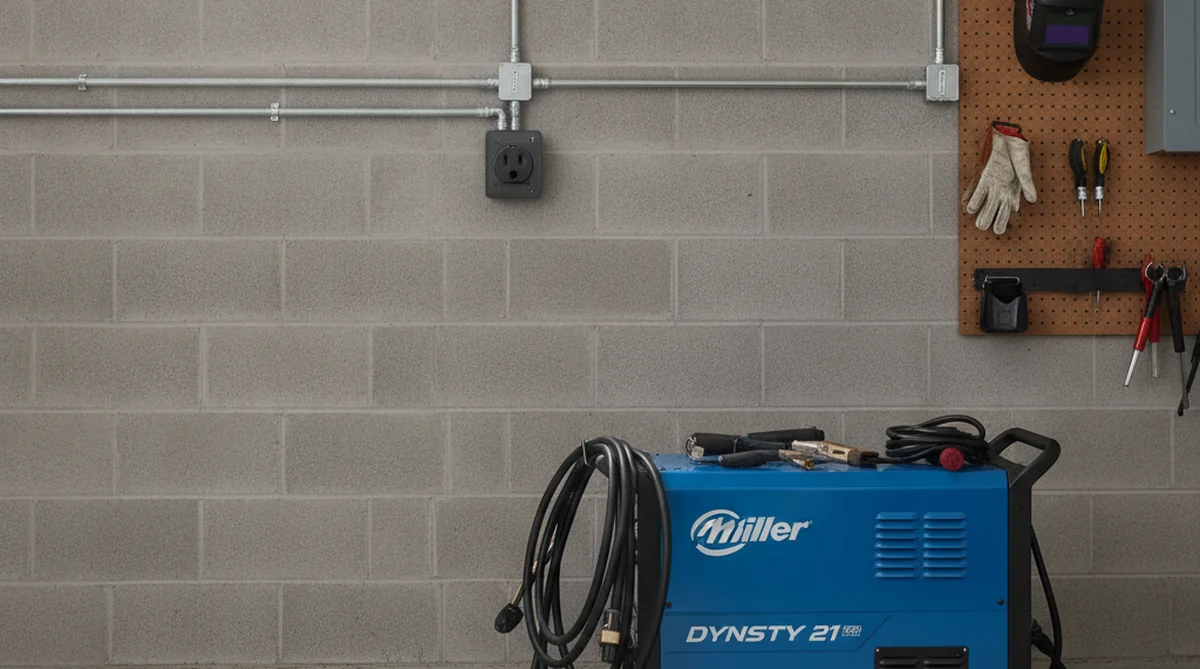

240V Outlet Installation for Welders in Sumter SC Garages
By Sikes Electrical | August 30, 2026 | 8 min read
Installing a 240V outlet for your welder in your Sumter, SC garage requires a licensed electrician to run dedicated wiring from your electrical panel, install an appropriate circuit breaker (typically 30-50 amps depending on your welder), and mount a NEMA-compatible receptacle that meets your equipment's power requirements and local electrical codes.
Why Welders Need 240V Outlets in Sumter Garages
Most serious welding equipment requires 240-volt power to operate effectively, which is double the voltage of standard household outlets. MIG welders, TIG welders, and stick welders used for automotive work, fabrication projects, and home workshops in Sumter draw significant amperage that 120V circuits simply cannot provide. Without proper 240V power, your welder will underperform, trip breakers repeatedly, or fail to strike an arc altogether.
Homeowners and small business owners throughout Orangeburg County who invest in quality welding equipment need dedicated circuits that can handle the electrical load safely. A properly installed 240V outlet ensures your welder operates at full capacity while protecting your home's electrical system from overload and potential fire hazards.
What Type of 240V Outlet Does Your Welder Require
The specific outlet type depends on your welder's amperage rating and plug configuration, with most residential welders using either NEMA 6-50 (50-amp) or NEMA 6-30 (30-amp) receptacles. Before installation, check your welder's nameplate or owner's manual to identify the exact voltage, amperage, and plug type—this information is critical for ensuring compatibility and safety.
Common welder outlet configurations include:
- NEMA 6-30R: 30-amp, 240V outlet for smaller MIG and stick welders
- NEMA 6-50R: 50-amp, 240V outlet for larger welding machines and plasma cutters
- NEMA 14-30R or 14-50R: Four-prong outlets that include a neutral wire (less common for welders but used for some equipment)
A licensed local electrician can evaluate your specific welder model and recommend the correct outlet type, wire gauge, and circuit breaker size to match your equipment's power demands and comply with National Electrical Code (NEC) requirements.
The 240V Outlet Installation Process for Sumter Garages
Professional 240V outlet installation involves running new dedicated wiring from your electrical panel to the garage location where you'll use your welder, typically using 8-gauge or 6-gauge wire depending on amperage requirements and distance. The process begins with a thorough assessment of your existing electrical panel to ensure it has sufficient capacity and available breaker spaces for the new circuit.
Here's what the installation typically includes:
- Electrical panel evaluation and load calculation to confirm adequate capacity
- Installation of a new double-pole circuit breaker (30, 40, or 50 amps as needed)
- Running appropriate gauge wire through walls, attic space, or conduit to your garage
- Mounting a code-compliant outlet box at a convenient height (typically 3-4 feet from the floor)
- Installing the correct NEMA receptacle and securing all connections
- Testing the circuit for proper voltage, grounding, and functionality
For garages in Sumter that are detached from the main house, the installation may require underground conduit runs or overhead service lines, which adds complexity but ensures safe power delivery to your workspace. If you need a 240V welder outlet installed in your Sumter garage, call Sikes Electrical at (803) 596-3122 for a professional assessment and accurate quote.
Panel Upgrades May Be Necessary for Welder Circuits
Many older homes in Sumter and throughout Orangeburg County have 100-amp or 150-amp electrical panels that may lack the capacity to safely add a high-amperage welder circuit without upgrades. If your panel is already near capacity with existing circuits for HVAC, water heaters, and other appliances, adding a 50-amp welder circuit could overload the system and create safety hazards.
Signs you may need a panel upgrade before welder outlet installation include:
- Frequent breaker trips or flickering lights when running multiple appliances
- An electrical panel with no available breaker slots
- A main service rated at 100 amps or less
- Outdated panels with obsolete components or signs of corrosion
Sikes Electrical specializes in panel upgrades for residential and commercial properties, ensuring your electrical system can safely handle welding equipment along with your other power needs. Modern 200-amp panels provide ample capacity for welders, EV chargers, generators, and future electrical demands.
Code Compliance and Permit Requirements in Sumter
All 240V outlet installations in Sumter must comply with South Carolina electrical codes and typically require permits and inspections to ensure safety and proper installation. Working with a licensed local electrician ensures your welder circuit meets all code requirements, including proper wire sizing, grounding, overcurrent protection, and GFCI protection where required.
Code-compliant installations protect you from several risks:
- Electrical fires caused by undersized wiring or improper connections
- Insurance claim denials if unpermitted work contributes to damage
- Complications when selling your Sumter home, as unpermitted electrical work must be disclosed
- Potential fines from local building authorities for code violations
Professional electricians handle permit applications, coordinate inspections, and ensure all work meets current electrical standards, giving you peace of mind that your garage welding setup is both safe and legal.
Why Choose a Licensed Electrician for Welder Outlet Installation
Attempting DIY installation of 240V circuits is dangerous and illegal without proper licensing, as mistakes can result in electrocution, fires, and serious property damage. Licensed electricians have the training, tools, and experience to work safely with high-voltage circuits, properly size components, and identify potential issues with your electrical system before they become hazards.
Sikes Electrical brings specialized expertise as a licensed local electrician serving Sumter and Orangeburg County for residential and commercial wiring, panel upgrades, EV chargers, generators, and electrical repairs. Our team understands local soil conditions for grounding systems, typical construction methods in Sumter-area homes, and the specific challenges of garage electrical installations in South Carolina's climate.
Professional installation also provides long-term value through proper workmanship that prevents future problems, warranty coverage on labor and materials, and the assurance that your welder will operate safely and reliably for years to come. Whether you're setting up a hobby welding station or equipping a professional fabrication shop, proper electrical infrastructure is the foundation for successful metalworking projects.
Frequently Asked Questions
How much does it cost to install a 240V outlet for a welder in Sumter, SC?
The cost typically ranges from $300 to $800 depending on the distance from your electrical panel to the garage outlet location, the amperage required, and whether your panel has available capacity. If a panel upgrade is needed, costs increase to $1,500-$3,000 or more depending on the service size and complexity of the installation.
Can I plug my welder into my dryer outlet?
This is not recommended and may violate electrical codes, as dryer circuits are typically on shared circuits and may not provide adequate amperage for welding equipment. Welders need dedicated circuits to prevent overloading and ensure consistent power delivery without affecting other household appliances.
What size breaker do I need for a 240V welder outlet?
Most residential welders require either a 30-amp or 50-amp double-pole breaker, depending on the welder's maximum input current rating. Your electrician will consult your welder's specifications and apply NEC code requirements, which typically mandate that the circuit breaker be sized at 125% of the continuous load rating.
How long does it take to install a 240V welder outlet in a garage?
A straightforward installation with an adjacent garage and available panel capacity typically takes 3-5 hours. More complex installations involving long wire runs, detached garages, or panel upgrades may require a full day or multiple visits to complete the work and pass inspections.
Do I need a permit to install a 240V outlet for my welder in Sumter?
Yes, electrical permits are required for new circuit installations in Sumter and throughout South Carolina. Licensed electricians typically handle permit applications and coordinate required inspections to ensure your installation meets local and national electrical codes.
Published August 30, 2026 | Sikes Electrical serves Orangeburg, Sumter, Summerville, Bamberg, Holly Hill, and surrounding counties in the SC Midlands.
